pGL4.13[luc2/SV40] 载体

质粒类型: 启动子报告载体

质粒宿主 哺乳细胞

质粒用途 启动子检测 片段类型 Promoter

片段物种 空载体 原核抗性 Amp

筛选标记 荧光标记 Fluc

启动子 SV40 复制子 pUC

感受态 DH5a 温度 37度

背景载体 正向引物 RVP3：CTAGCAAAATAGGCTGTCCC



反向引物 GLP4：GGGTAGAATGGCGCTGGG 拷贝数 高

克隆方法: 多克隆位点，限制性内切酶

载体大小: 4641 bp

载体抗性: Ampicillin (氨苄青霉素)

出品公司：Promega

备注: SV40 promoter-containing internal control vector for strong constitutive expression of luciferase.



载体描述

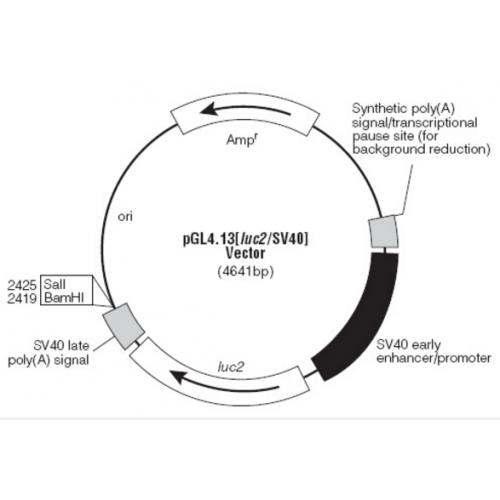

The pGL4.13[luc2/SV40] Vector(a–e)encodes the luciferase reporter gene luc2 (Photinus pyralis) and is designed for high expression and reduced anomalous transcription. The pGL4 Vectors are engineered with fewer consensus regulatory sequences and a synthetic gene, which has been codon optimized for mammalian expression. The pGL4.13[luc2/ SV40] Vector contains the luc2 reporter gene and the SV40 early enhancer/promoter for use as an expression control or a co-reporter vector.

序列信息：

GGCCTAACTGGCCGGTACCTGAGCTCGCTAGCCTCGAGGATATCAGATCTGCGCAGCACCATGGCCTGAAATAACCTCTGAAAGAGGAAC

TTGGTTAGGTACCTTCTGAGGCGGAAAGAACCAGCTGTGGAATGTGTGTCAGTTAGGGTGTGGAAAGTCCCCAGGCTCCCCAGCAGGCA

GAAGTATGCAAAGCATGCATCTCAATTAGTCAGCAACCAGGTGTGGAAAGTCCCCAGGCTCCCCAGCAGGCAGAAGTATGCAAAGCATG

CATCTCAATTAGTCAGCAACCATAGTCCCGCCCCTAACTCCGCCCATCCCGCCCCTAACTCCGCCCAGTTCCGCCCATTCTCCGCCCCAT

GGCTGACTAATTTTTTTTATTTATGCAGAGGCCGAGGCCGCCTCGGCCTCTGAGCTATTCCAGAAGTAGTGAGGAGGCTTTTTTGGAGGC

CTAGGCTTTTGCAAAAAGCTTGGCAATCCGGTACTGTTGGTAAAGCCACCATGGAAGATGCCAAAAACATTAAGAAGGGCCCAGCGCCA

TTCTACCCACTCGAAGACGGGACCGCCGGCGAGCAGCTGCACAAAGCCATGAAGCGCTACGCCCTGGTGCCCGGCACCATCGCCTTT

ACCGACGCACATATCGAGGTGGACATTACCTACGCCGAGTACTTCGAGATGAGCGTTCGGCTGGCAGAAGCTATGAAGCGCTATGGGC

TGAATACAAACCATCGGATCGTGGTGTGCAGCGAGAATAGCTTGCAGTTCTTCATGCCCGTGTTGGGTGCCCTGTTCATCGGTGTGGC

TGTGGCCCCAGCTAACGACATCTACAACGAGCGCGAGCTGCTGAACAGCATGGGCATCAGCCAGCCCACCGTCGTATTCGTGAGCAA

GAAAGGGCTGCAAAAGATCCTCAACGTGCAAAAGAAGCTACCGATCATACAAAAGATCATCATCATGGATAGCAAGACCGACTACCAGG

GCTTCCAAAGCATGTACACCTTCGTGACTTCCCATTTGCCACCCGGCTTCAACGAGTACGACTTCGTGCCCGAGAGCTTCGACCGGGA

CAAAACCATCGCCCTGATCATGAACAGTAGTGGCAGTACCGGATTGCCCAAGGGCGTAGCCCTACCGCACCGCACCGCTTGTGTCCGA

TTCAGTCATGCCCGCGACCCCATCTTCGGCAACCAGATCATCCCCGACACCGCTATCCTCAGCGTGGTGCCATTTCACCACGGCTTCG

GCATGTTCACCACGCTGGGCTACTTGATCTGCGGCTTTCGGGTCGTGCTCATGTACCGCTTCGAGGAGGAGCTATTCTTGCGCAGCTT

GCAAGACTATAAGATTCAATCTGCCCTGCTGGTGCCCACACTATTTAGCTTCTTCGCTAAGAGCACTCTCATCGACAAGTACGACCTAAG

CAACTTGCACGAGATCGCCAGCGGCGGGGCGCCGCTCAGCAAGGAGGTAGGTGAGGCCGTGGCCAAACGCTTCCACCTACCAGGC

ATCCGCCAGGGCTACGGCCTGACAGAAACAACCAGCGCCATTCTGATCACCCCCGAAGGGGACGACAAGCCTGGCGCAGTAGGCAA

GGTGGTGCCCTTCTTCGAGGCTAAGGTGGTGGACTTGGACACCGGTAAGACACTGGGTGTGAACCAGCGCGGCGAGCTGTGCGTCC

GTGGCCCCATGATCATGAGCGGCTACGTTAACAACCCCGAGGCTACAAACGCTCTCATCGACAAGGACGGCTGGCTGCACAGCGGCG

ACATCGCCTACTGGGACGAGGACGAGCACTTCTTCATCGTGGACCGGCTGAAGAGCCTGATCAAATACAAGGGCTACCAGGTAGCCCC

AGCCGAACTGGAGAGCATCCTGCTGCAACACCCCAACATCTTCGACGCCGGGGTCGCCGGCCTGCCCGACGACGATGCCGGCGAGC

TGCCCGCCGCAGTCGTCGTGCTGGAACACGGTAAAACCATGACCGAGAAGGAGATCGTGGACTATGTGGCCAGCCAGGTTACAACCG

CCAAGAAGCTGCGCGGTGGTGTTGTGTTCGTGGACGAGGTGCCTAAAGGACTGACCGGCAAGTTGGACGCCCGCAAGATCCGCGAG

ATTCTCATTAAGGCCAAGAAGGGCGGCAAGATCGCCGTGTAATAATTCTAGAGTCGGGGCGGCCGGCCGCTTCGAGCAGACATGATAA

GATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTA

ACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGGTGTGGGAGGTTTTTTAAA

GCAAGTAAAACCTCTACAAATGTGGTAAAATCGATAAGGATCCGTCGACCGATGCCCTTGAGAGCCTTCAACCCAGTCAGCTCCTTCCG

GTGGGCGCGGGGCATGACTATCGTCGCCGCACTTATGACTGTCTTCTTTATCATGCAACTCGTAGGACAGGTGCCGGCAGCGCTCTTC

CGCTTCCTCGCTCACTGACTCGCTGCGCTCGGTCGTTCGGCTGCGGCGAGCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATC

CACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGG

CGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAA

GATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCC

CTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGC

ACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCAC

TGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCT

ACACTAGAAGAACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAA

ACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATCTCAAGAAGATCCTTTGATCTTTTC

TACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTT

AAATTAAAAATGAAGTTTTAAATCAATCTAAAGTATATATGAGTAAACTTGGTCTGACAGCGGCCGCAAATGCTAAACCACTGCAGTGGTT

ACCAGTGCTTGATCAGTGAGGCACCGATCTCAGCGATCTGCCTATTTCGTTCGTCCATAGTGGCCTGACTCCCCGTCGTGTAGATCAC

TACGATTCGTGAGGGCTTACCATCAGGCCCCAGCGCAGCAATGATGCCGCGAGAGCCGCGTTCACCGGCCCCCGATTTGTCAGCAA

TGAACCAGCCAGCAGGGAGGGCCGAGCGAAGAAGTGGTCCTGCTACTTTGTCCGCCTCCATCCAGTCTATGAGCTGCTGTCGTGATG

CTAGAGTAAGAAGTTCGCCAGTGAGTAGTTTCCGAAGAGTTGTGGCCATTGCTACTGGCATCGTGGTATCACGCTCGTCGTTCGGTAT

GGCTTCGTTCAACTCTGGTTCCCAGCGGTCAAGCCGGGTCACATGATCACCCATATTATGAAGAAATGCAGTCAGCTCCTTAGGGCCT

CCGATCGTTGTCAGAAGTAAGTTGGCCGCGGTGTTGTCGCTCATGGTAATGGCAGCACTACACAATTCTCTTACCGTCATGCCATCCG

TAAGATGCTTTTCCGTGACCGGCGAGTACTCAACCAAGTCGTTTTGTGAGTAGTGTATACGGCGACCAAGCTGCTCTTGCCCGGCGT

CTATACGGGACAACACCGCGCCACATAGCAGTACTTTGAAAGTGCTCATCATCGGGAATCGTTCTTCGGGGCGGAAAGACTCAAGGA

TCTTGCCGCTATTGAGATCCAGTTCGATATAGCCCACTCTTGCACCCAGTTGATCTTCAGCATCTTTTACTTTCACCAGCGTTTCGGGG

TGTGCAAAAACAGGCAAGCAAAATGCCGCAAAGAAGGGAATGAGTGCGACACGAAAATGTTGGATGCTCATACTCGTCCTTTTTCAAT

ATTATTGAAGCATTTATCAGGGTTACTAGTACGTCTCTCAAGGATAAGTAAGTAATATTAAGGTACGGGAGGTATTGGACAGGCCGCAAT

AAAATATCTTTATTTTCATTACATCTGTGTGTTGGTTTTTTGTGTGAATCGATAGTACTAACATACGCTCTCCATCAAAACAAAACGAAACA

AAACAAACTAGCAAAATAGGCTGTCCCCAGTGCAAGTGCAGGTGCCAGAACATTTCTCT
