质粒简介：

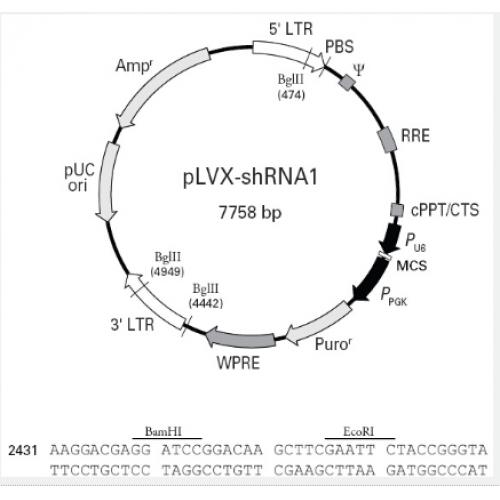

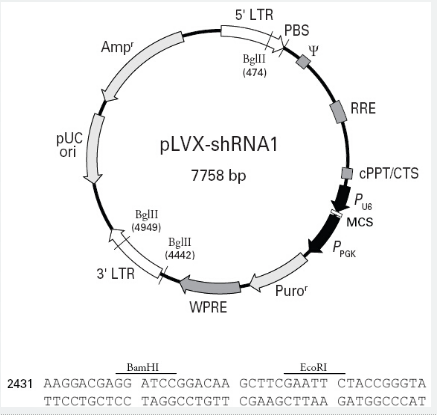

pLVX-shRNA1 is an HIV-1-based, lentiviral expression vector designed to express a small hair-pin RNA (shRNA) for RNA interference (RNAi) studies. Expression of your shRNA is drivenby the RNA Pol III-dependent, human U6 promoter (PU6), located just upstream of the MCS. pLVX-shRNA1 can either be used as a plasmid expression vector and transfected into cells, or it can be packaged into viral particles and transduced into cells. Lentiviral particles derived from the vector allow the expression of shRNAs in virtually any cell type, including primary cells. pLVX-shRNA1 contains all of the viral processing elements necessary for the production of replication-incompetent lentivirus, as well as elements to improve viral titer and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral RNA (1), leading to increased viral titers from packaging cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus (2). Finally, pLVX-shRNA1 also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, thiselement creates a central DNA flap that increases nuclear import of the viral genome, resulting in improved vector integration and more efficient transduction (3). In addition to lentiviral elements, pLVX-shRNA1 contains a puromycin resistance gene (Puror)under the control of the murine phosphoglycerate kinase promoter (PPGK) for the selection of stable transductants. The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr) for propagation and selection in bacteria.

产品参数：

出品公司：Clontech

启动子: PGK,U6

复制子: pUC ori

终止子: SV40 poly(A) signal

质粒分类:病毒系列，慢病毒克隆载体

质粒大小:7758bp

原核抗性:Amp

筛选标记:Puro

克隆菌株:Stbl3

培养条件:37℃，有氧 LB

表达宿主:哺乳细胞

诱导方式:无须诱导，瞬时表达

5'测序引物:U6:ATGGACTATCATATGCTTACCGTA

3'测序引物:根据序列设计引物
