质粒简介:

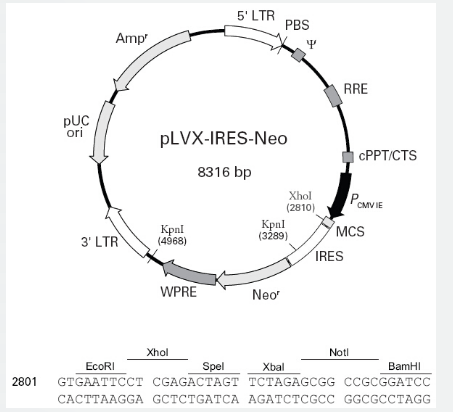

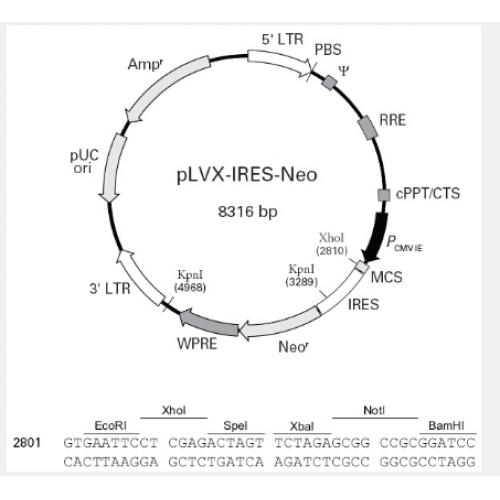

pLVX-IRES-Neo is an HIV-1-based, lentiviral expression vector that allows the simultaneous expression of your protein of interest and G418 resistance (Neor ) in virtually any mammalian cell type, including primary cells. The vector expresses your protein of interest and Neor from a bicistronic mRNA transcript, allowing G418 resistance to be used as an indicator of transduction efficiency and a marker for selection.
Expression of the bicistronic transcript is driven by the constitutively active human cytomegalovirus immediate early promoter (PCMV IE) located just upstream of the MCS. An encephalomyocarditis virus (EMCV) internal ribosome entry site (IRES), positioned between the MCS and Neor , facilitates cap-independent translation of Neor from an internal start site at the IRES/Neor junction (1).
pLVX-IRES-Neo contains all of the viral processing elements necessary for the production of replication-incompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral RNA (2), leading to increased viral titers from packaging cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus (3). Finally, pLVX-IRES-Neo also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, this element creates a central DNA flap that increases nuclear import of the viral genome, resulting in improved vector integration and more efficient transduction (4). The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr ) for propagation and selection in bacteria.
产品参数:
启动子: CMV
复制子: pUC ori
终止子: SV40 poly(A) signal
质粒分类: 病毒系列,慢病毒克隆载体
质粒大小: 8269bp
原核抗性: Amp
筛选标记: Neo
克隆菌株: Stbl3
培养条件: 37℃,有氧 LB
表达宿主: 哺乳细胞
诱导方式: 无须诱导,瞬时表达
5'测序引物: CMV-F:CGCAAATGGGCGGTAGGCGTG
3'测序引物: 根据序列设计引物
