16孔 1.5ml管磁力架 经典款
Cat. QYM10
此款架子为启研智造，参考进口同类产品，并改进，极具完美表现。
改进点有：
1.架身为超轻的合金/塑料材质，一体设计，更坚固。尤其在从试验台不慎掉落时候不会摔坏。
2.各个部件采用中国木工的榫卯结构，替代胶粘的不牢固性。
3.透明架子部分有标示方向的箭头；震荡器接触点采用圆头设计，不易损。
4.磁铁采用国际最高标号的超强永磁铁，吸附效率同样优秀。

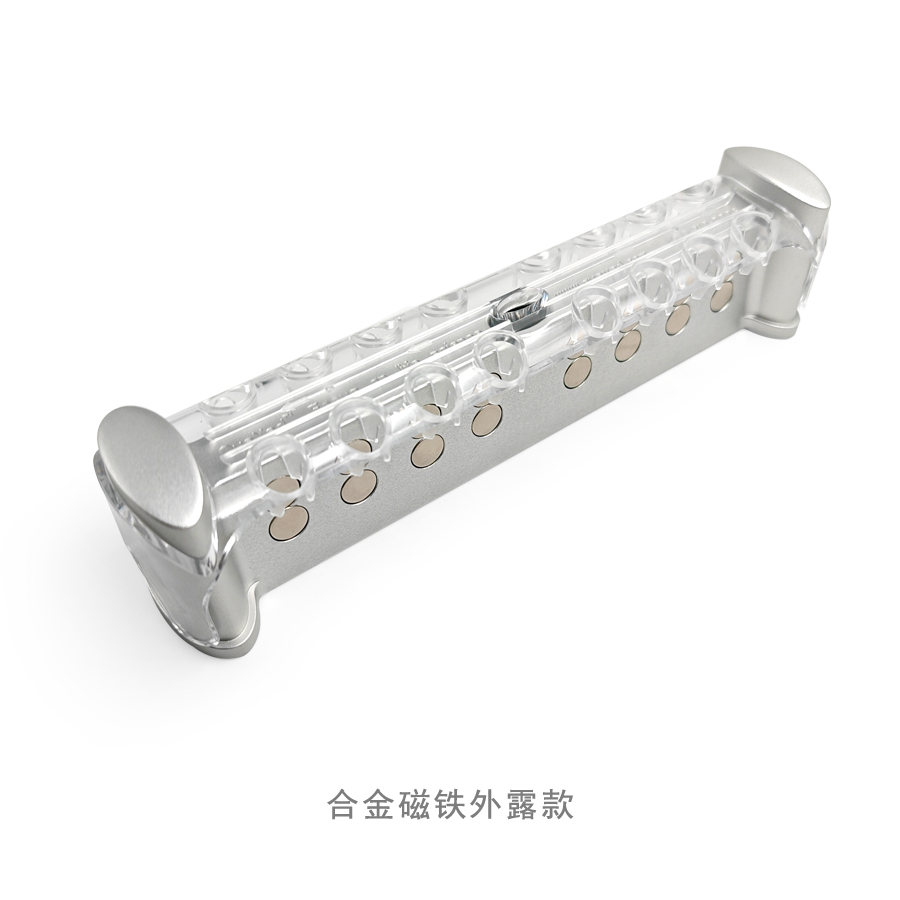

5.增加了磁铁外露的C款设计（吸附距离相差0.8mm的壁厚，磁吸附力增强约30%）.使吸附距离更短，吸附效率更强。
产品描述：
启研磁力架用于磁珠法分离样品。磁珠可用于分离细胞，蛋白，核酸，或其他生物样品。首先将磁珠与样品以适当的比例在EP管中混合。数分钟内，磁珠即可与样品中目的分子或细胞结合。之后将EP管置入磁场中，在磁力作用下，与磁珠结合的目的分子或细胞可吸附在管壁上。弃上清，获得被磁珠捕获的目标分子或细胞。经过反复的吸附洗脱等环节，即可实现对目标生物样本的分离纯化。当外加磁场移除后，磁珠即分散，不会残留磁性。启研磁力架可用于任何种类的磁珠分离。
产品特色：
规格：16孔，可放置1.5ml/2ml EP管。
工作体积：200-1200ul。
体积小巧，操作简单，可提供较小体积样品的有效磁珠分离。可同时分离16管样品。
室温储存。-20℃-70℃之间保持性能稳定。
启研使用的是国内最高标号的磁铁，好磁铁是有标准的。每块磁铁可提供10000g的垂直力，表磁大于5000gauss。
清洁与消毒：
可用75%酒精或1%次氯酸钠消毒。消毒后及时擦干。不可浸泡于水或其他液体中。
提示：请勿高压。
保存与稳定性：
磁力架包含强力钕磁铁部件，其磁性可维持终身不会消退。建议保存于凉爽、干燥环境。请勿在超过70℃（122℉）的环境下使用。避免暴露于外加磁场下。避免日光或紫外灯直射，因UV会使其表面变脆弱。
警告：
磁力架包含强磁场。佩戴心脏起搏器或其他医疗磁场装置者请勿使用。使用时请与钢铁制品保存0.5米以上距离，如刀片，镊子等一定远离磁力架，避免发生危险。
Quayad（启研）Magnetic Separator Rack of 1.5/2.0ml EP tubes(Aluminum alloy/plastic)
Cat. QYM10
●Holds:1.5/2.0ml EP tubes; 16-well;two types of rack(Aluminum alloy and plastic)
●Working volume:200-1200μl
●Small size, simple operation, suitable for effective magnetic bead separation of small volume samples.The Rack can take up to 16 samples at the same time.
●Store at ambient temperature, and temperature range that can be subjected to -20-70°C.
●Magnetic bead suction 10000g; Surface gauss greater than 5000 gs.
Product Description
This shelf is manufactured by QuaYad, referring to imported similar products.
1. As an ultra-light alloy/plastic material, integrated design, more robust.
2. Each component adopts the mortise and tenon structure of Chinese woodworker to replace the unsteadiness of adhesive.
3. The transparent shelf part has arrows indicating the direction; The contact point of the shaker is designed with a round head, which is not easy to damage.
4. Magnet with the highest international label of super-strong permanent magnet, adsorption efficiency is high.
5. The C design with the magnet exposed is increased (the adsorption distance difference is 0.8mm, and the magnetic adsorption force is increased by about 30%). The adsorption distance is shorter and the adsorption efficiency is stronger.
The Magnetic Separator Rack is used for sample separation by magnetic bead method. The magnetic beads can be used to isolate cells, proteins, nucleic acids or other biomolecules. The magnetic beads are mixed with the sample in the proper ratio in a EP tube, and usually bind to the target biomolecules within a few minutes. The EP tube is placed on the shelf, and the target molecule or cell combined with the magnetic bead can be adsorbed on the tube wall with the magnetic bead under the action of magnetic force. Discard the supernatant and obtain the target molecule or cell captured by the magnetic bead. After repeated adsorption and elution, the target biological samples can be separated and purified. When the magnetic field is removed, the magnetic beads are dispersed and no residual magnetism. These magnets can be used with all types of magnetic beads.
Precautions
These magnets contain very strong permanent magnets. People wearing a pacemaker or any other medical magnetized implant should not use this product unless advised by a health professional; the implant could be affected or damaged by exposure to a strong magnetic field. Keep tools and objects that could be damaged by the magnetic field out of the working area. This includes, but is not restricted to, credit cards and other products containing magnetic recording devices. Keep away from delicate instruments, watches, electronic equipment, displays and monitors. The magnet may attract steel or other magnetic material with high mechanical forces. Take care during handling. Avoid contact between two magnets. Do not pull the magnets apart if contact has been made; twist off to prevent damage to the unit or fingers.
Cleaning and Disinfection
The following materials are recommended for cleaning purposes. Spray and/or wipe the magnetic rack either with 70% alcohol, or 1% sodium hypochlorite solution (bleach). Dry promptly after disinfection. Do not submerge in aqueous solutions and avoid prolonged exposure to water orother organic solvents.
Note: Do not autoclave the magnetic.
Storage and stability
The magnets contain high-energy Neodymium permanent magnets, and the magnetic strength will not diminish significantly during the lifetime of the product. Do not use the magnets above 70°C (122°F) and store in a cool, dry environment. Avoid prolonged exposure of the magnets to direct sunlight or artificial UV light as the surface material may become brittle.
