16孔 PCR管磁力架

Cat. QYM07

产品描述：

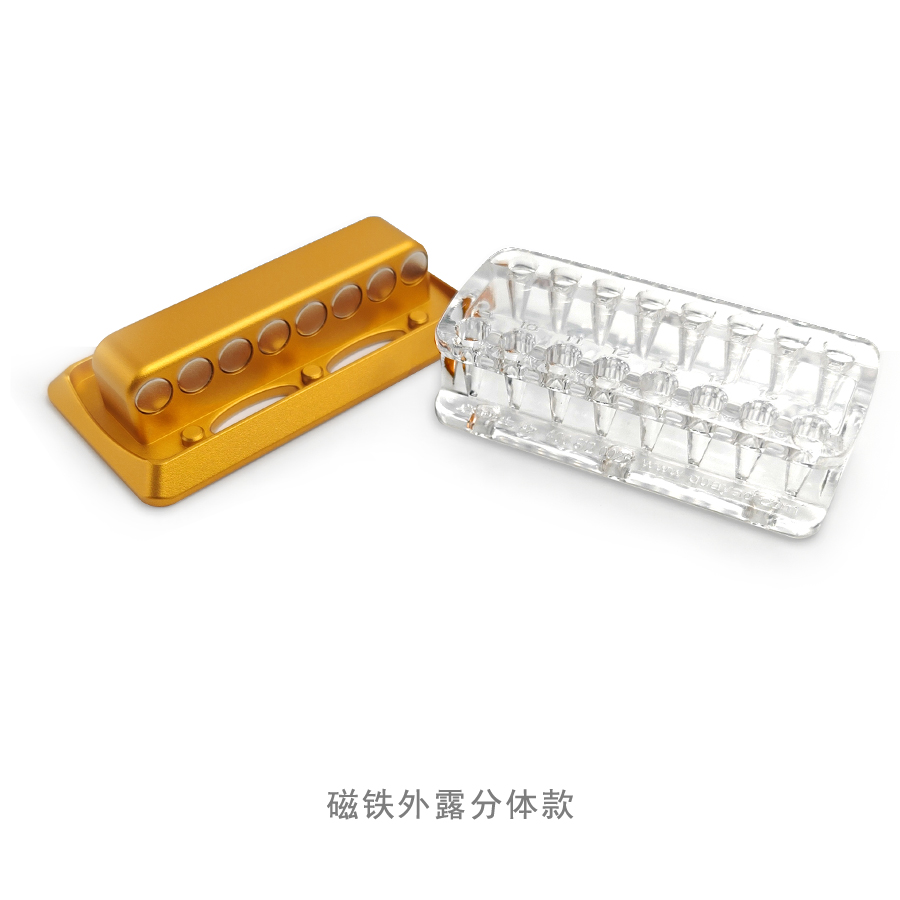

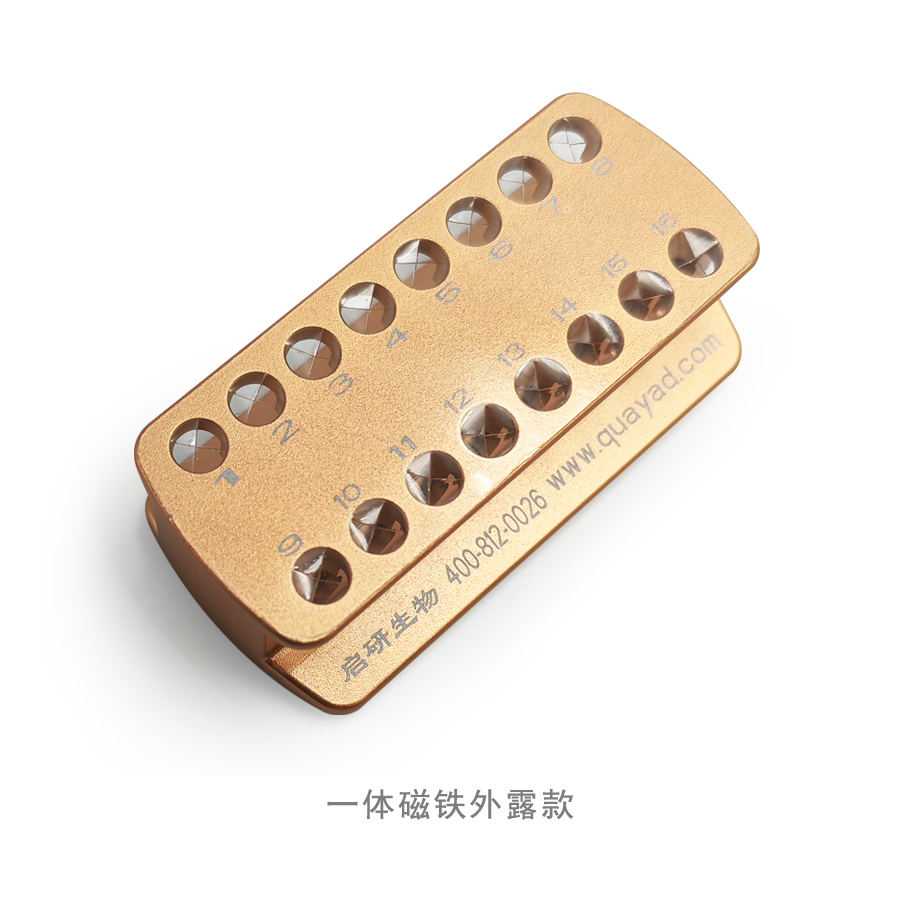

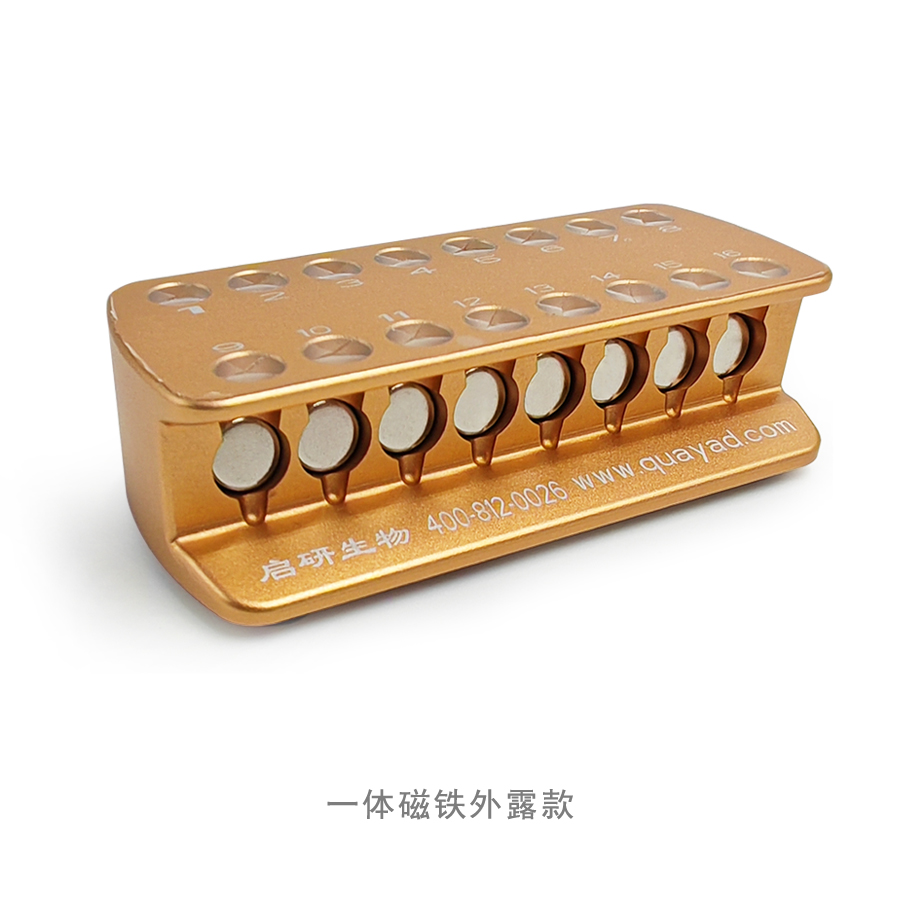

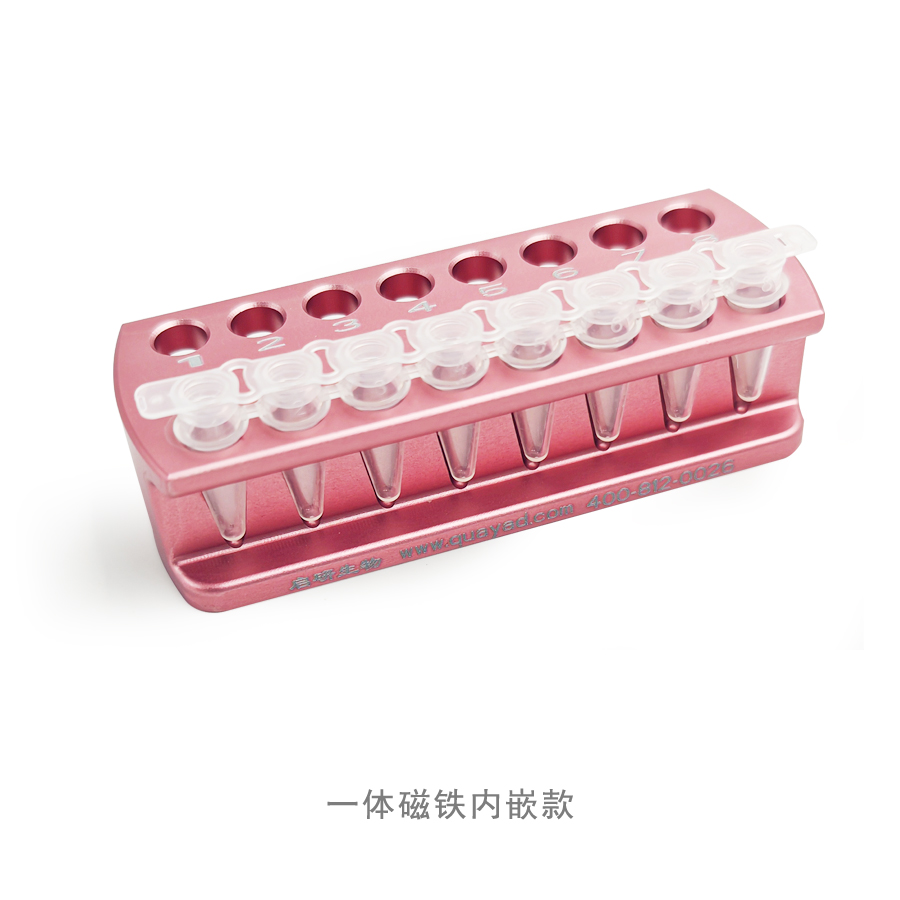

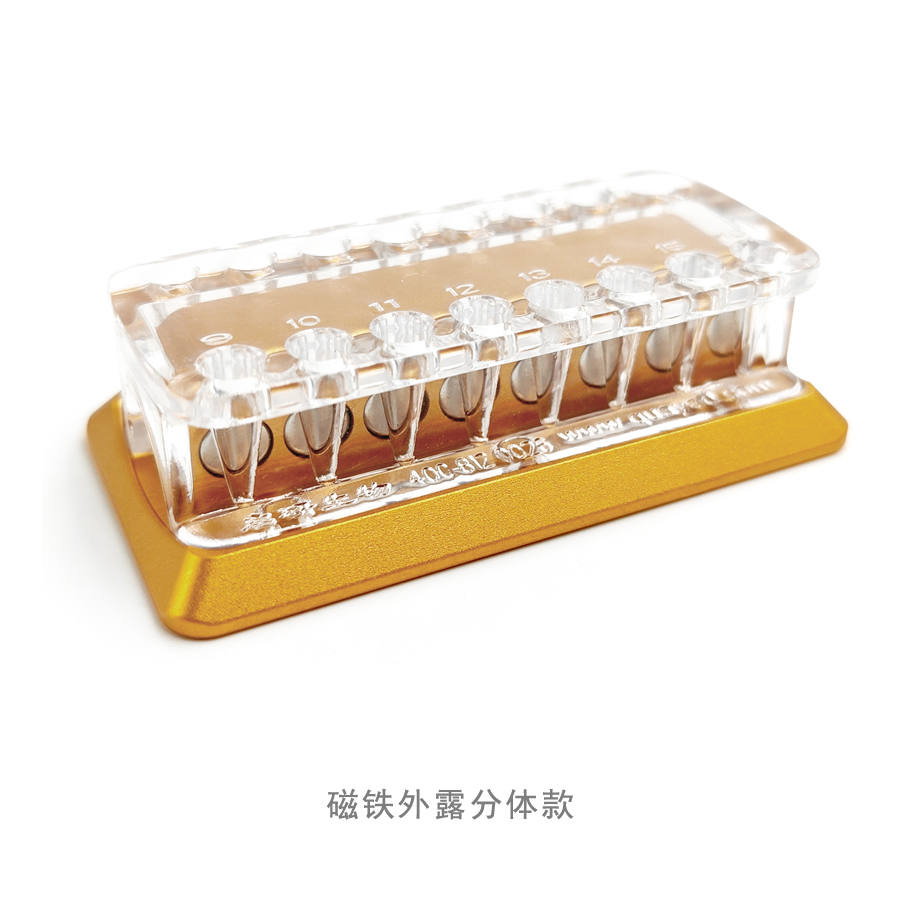

本款磁力架分为A，B和C款。 A款为一体化磁铁外露设计，磁吸附距离近，效率高； B款，采用分体设计，更方便磁体与样本的分离；C款为一体式隐藏磁铁设计，采用整块大体积磁铁内镶嵌，同时兼顾吸力强大与外表美观。三款磁力架磁铁采用国际最强标号，体积定制为可容纳的最大，磁力强；都可同时处理16个样本，且保证两排样本之间的PCR管开盖后不互相干扰，提升了操作舒适度。

启研磁力架用于磁珠法分离样品。磁珠可用于分离细胞，蛋白，核酸，或其他生物样品。首先将磁珠与样品以适当的比例在EP管中混合。数分钟内，磁珠即可与样品中目的分子或细胞结合。之后将EP管置入磁场中，在磁力作用下，与磁珠结合的目的分子或细胞可吸附在管壁上。弃上清，获得被磁珠捕获的目标分子或细胞。经过反复的吸附洗脱等环节，即可实现对目标生物样本的分离纯化。当外加磁场移除后，磁珠即分散，不会残留磁性。启研磁力架可用于任何种类的磁珠分离。



产品特色：

规格：16孔，可放置0.2ml/8x0.2ml排管。

工作体积：50-200ul尤其适合PCR产物回收使用。

体积小巧，操作简单，可提供较小体积样品的有效磁珠分离。可同时分离16管样品。

室温储存。-20℃-70℃之间保持性能稳定。

启研使用的是国内最高标号的磁铁，好磁铁是有标准的。此架子的每块磁铁可提供2300g的垂直拉力，表磁大于5000gauss。



清洁与消毒：

可用70%酒精或1%次氯酸钠消毒。消毒后及时擦干。不可浸泡于水或其他液体中。

提示：请勿高压。



保存与稳定性：

磁力架包含强力钕磁铁部件，其磁性可维持终身不会消退。建议保存于凉爽、干燥环境。请勿在超过70℃（122℉）的环境下使用。避免暴露于外加磁场下，不可沸水浸泡，不可高温高压灭菌，避免直接接触有机溶剂。



警告：

磁力架包含强磁场，使用时需远离金属器具。佩戴心脏起搏器或其他医疗磁场装置者请勿使用。本产品仅用于科研用途。





Quayad（启研）Magnetic Separator Rack of 16-well PCR tubes

Cat. QYM07(A/B/C)

●Holds: 16-well; 0.2ml PCR tubes or 8×0.2ml PCR tubes

●Working volume:50-200μl. It is especially suitable for recycling PCR products.

●This magnet is small, easy to handle, and enables efficient magnetic separation in applications using small volumes. The Rack can take up to 16 samples at the same time.

●Store at ambient temperature,and temperature range that can be subjected to -20-70°C.

●Magnetic bead suction 2300g, Surface gauss greater than 5000 gs.



Product Description

This section is divided into A, B and C Magnetic Separator Rack. A is an integrated magnet with a close-range magnetic adsorption and high efficiency; B is a split design to facilitate the separation of the magnet from the sample; C is an integrated hidden magnet design, the use of monolithic large-volume magnet inlay, while taking into account the strong suction and appearance of beauty. The three sets of Magnetic Separator Rack adopt   the highest international label magnets, with strong magnetic force; can handle 16 samples at the same time, and ensure that the PCR tube between the two rows of samples after opening the cover of the non-interference, improve the operation comfort.

The Magnetic Separator Rack were used to separate samples by magnetic bead method. The magnetic beads can be used to isolate cells, proteins, nucleic acids or other biomolecules. The magnetic beads are mixed with the sample in the proper ratio in a EP tube, and usually bind to the target biomolecules within a few minutes. The EP tube is placed on the shelf, and the target molecule or cell combined with the magnetic bead can be adsorbed on the tube wall with the magnetic bead under the action of magnetic force. Discard the supernatant and obtain the target molecule or cell captured by the magnetic bead. After repeated adsorption and elution, the target biological samples can be separated and purified. When the magnetic field is removed, the magnetic beads are dispersed and no residual magnetism. These magnets can be used with all types of magnetic beads.



Precautions

These magnets contain very strong permanent magnets. People wearing a pacemaker or any other medical magnetized implant should not use this product unless advised by a health professional; the implant could be affected or damaged by exposure to a strong magnetic field. Keep tools and objects that could be damaged by the magnetic field out of the working area. This includes, but is not restricted to, credit cards and other products containing magnetic recording devices. Keep away from delicate instruments, watches, electronic equipment, displays and monitors. The magnet may attract steel or other magnetic material with high mechanical forces. Take care during handling. Avoid contact between two magnets. Do not pull the magnets apart if contact has been made; twist off to prevent damage to the unit or fingers.



Cleaning and Disinfection

The following materials are recommended for cleaning purposes. Spray and/or wipe the magnetic rack either with 70% alcohol, or 1% sodium hypochlorite solution (bleach). Dry promptly after disinfection. Do not submerge in aqueous solutions and avoid prolonged exposure to water orother organic solvents.



Note: Do not autoclave the magnetic.



Storage and stability

The magnets contain high-energy Neodymium permanent magnets, and the magnetic strength will not diminish significantly during the lifetime of the product. Do not use the magnets above 70°C (122°F) and store in a cool, dry environment. Avoid prolonged exposure of the magnets to direct sunlight or artificial UV light as the surface material may become brittle.
